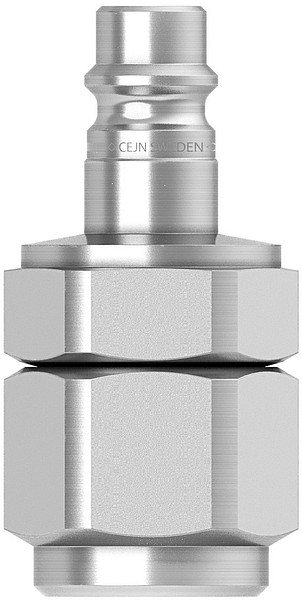

Cejn 9,5x13,5 Stream-Line pistik

The original CEJN standard has become a European standard due its popularity. The products of the line are long lasting and easy to use, even with one hand. The male threaded housings and the plugs feature a sealant mass. 320 series also includes light aluminium couplings.

The safety model of the 320 series is opened in two phases, thus relieving pressure in a controlled manner, reducing the risk of damages caused by loosened components. The safety model complies with ISO standards 4414 and EN 983.

Construction, safety coupling:
- Port: 7.6mm
- Flow: 2250 l/min
- Max. working pressure: 16 bar
- Min. exploding pressure: 140 bar
- Working temperature: -20 °C…+100° C
- Body material: Zinc-plated brass/steel
- Coupling power: 86.0 N
- Compatibility: Tema 1600, Rectus 25
